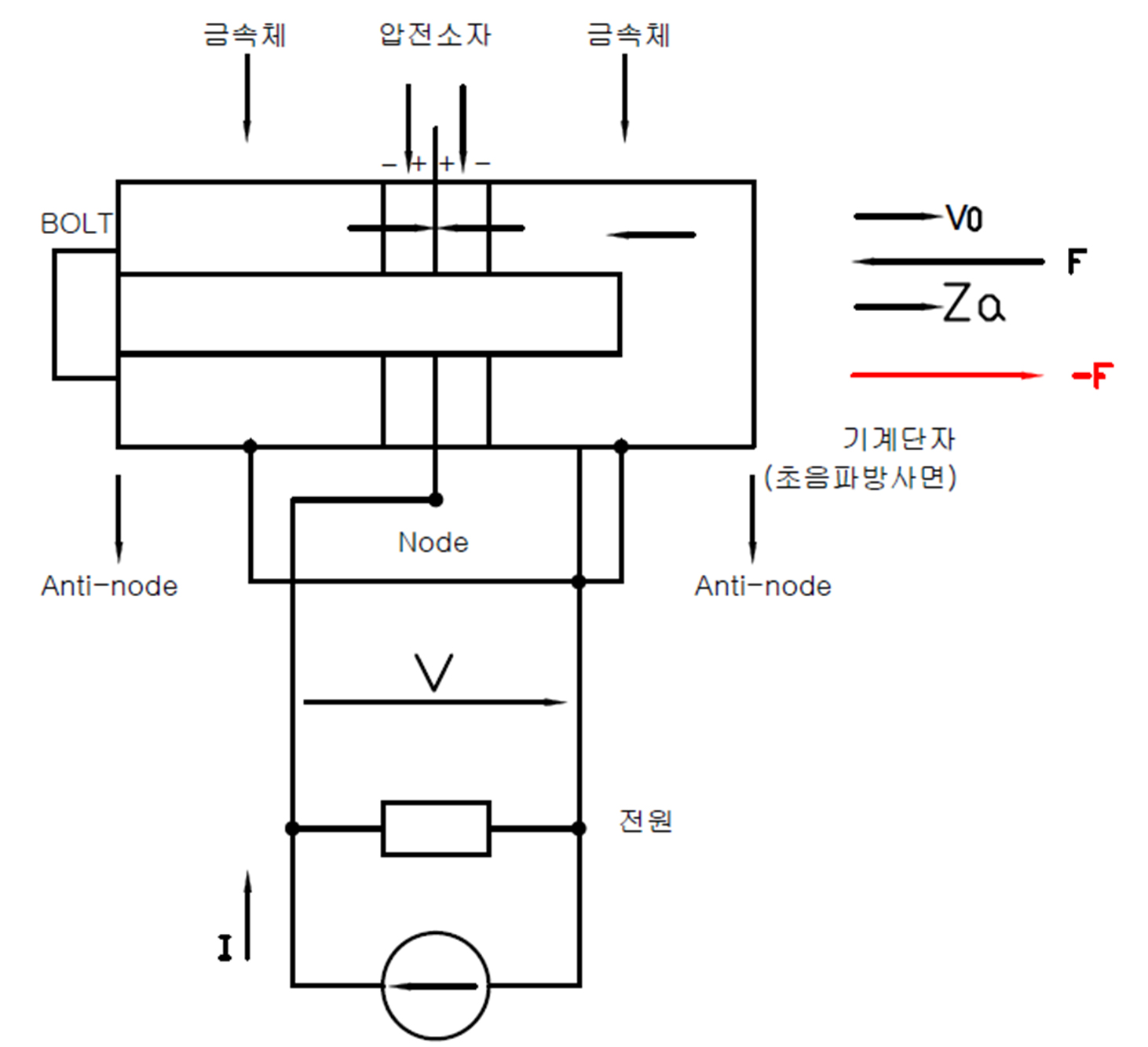

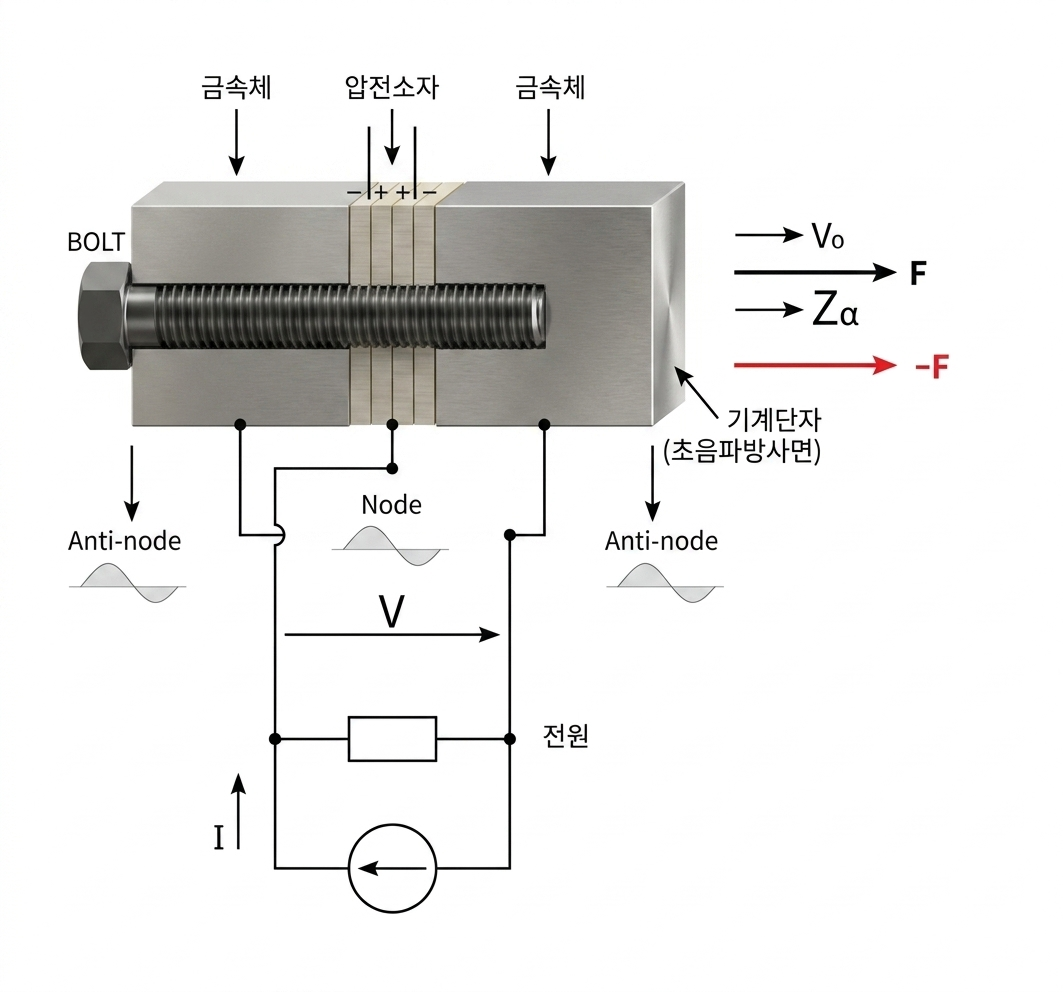

교류전계가 압전세라믹스에 가해지면 진동이 기계적 접합면을 통해 금속블럭 범위에서 정재파를 발생시키고 기계공진을 일으키는 원리입니다.

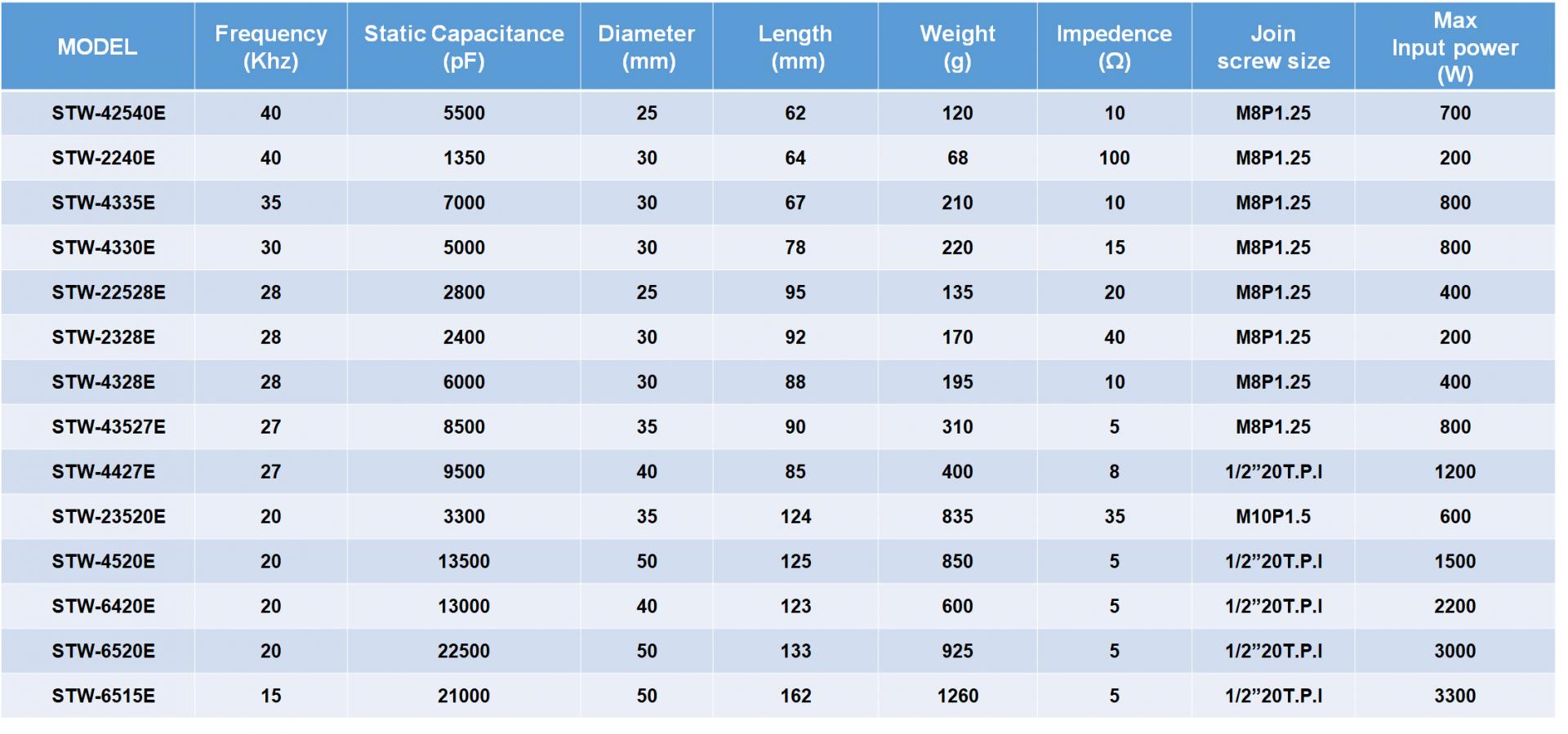

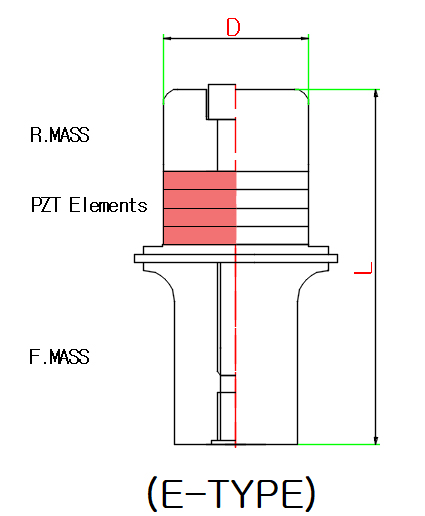

| MODEL | Freq. (Khz) |
Cap. (pF) |
Dia. (mm) |
Len. (mm) |
Weight (g) |
Imp. (Ω) |
Join Screw | Max Power |
|---|---|---|---|---|---|---|---|---|
| STW-42540E | 40 | 5500 | 25 | 62 | 120 | 10 | M8 P1.25 | 700W |
| STW-2240E | 40 | 1350 | 30 | 64 | 68 | 100 | M8 P1.25 | 200W |
| STW-4335E | 35 | 7000 | 30 | 67 | 210 | 10 | M8 P1.25 | 800W |
| STW-4330E | 30 | 5000 | 30 | 78 | 220 | 15 | M8 P1.25 | 800W |
| STW-22528E | 28 | 2800 | 25 | 95 | 135 | 20 | M8 P1.25 | 400W |
| STW-2328E | 28 | 2400 | 30 | 92 | 170 | 40 | M8 P1.25 | 200W |
| STW-4328E | 28 | 6000 | 30 | 88 | 195 | 10 | M8 P1.25 | 400W |
| STW-43527E | 27 | 8500 | 35 | 90 | 310 | 5 | M8 P1.25 | 800W |
| STW-4427E | 27 | 9500 | 40 | 85 | 400 | 8 | 1/2" 20T.P.I | 1200W |
| STW-23520E | 20 | 3300 | 35 | 124 | 835 | 35 | M10 P1.5 | 600W |
| STW-4520E | 20 | 13500 | 50 | 125 | 850 | 5 | 1/2" 20T.P.I | 1500W |
| STW-6420E | 20 | 13000 | 40 | 123 | 600 | 5 | 1/2" 20T.P.I | 2200W |
| STW-6520E | 20 | 22500 | 50 | 133 | 925 | 5 | 1/2" 20T.P.I | 3000W |
| STW-6515E | 15 | 21000 | 50 | 162 | 1260 | 5 | 1/2" 20T.P.I | 3300W |

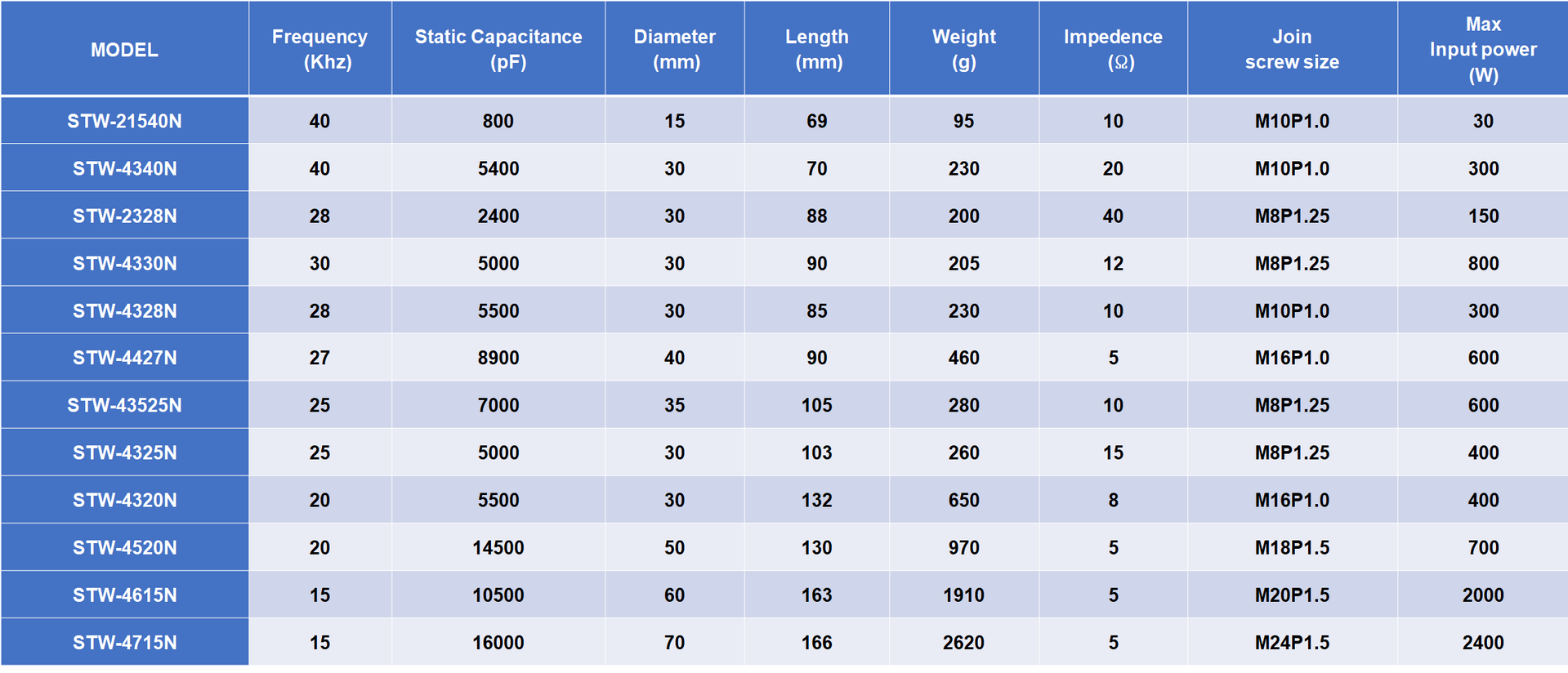

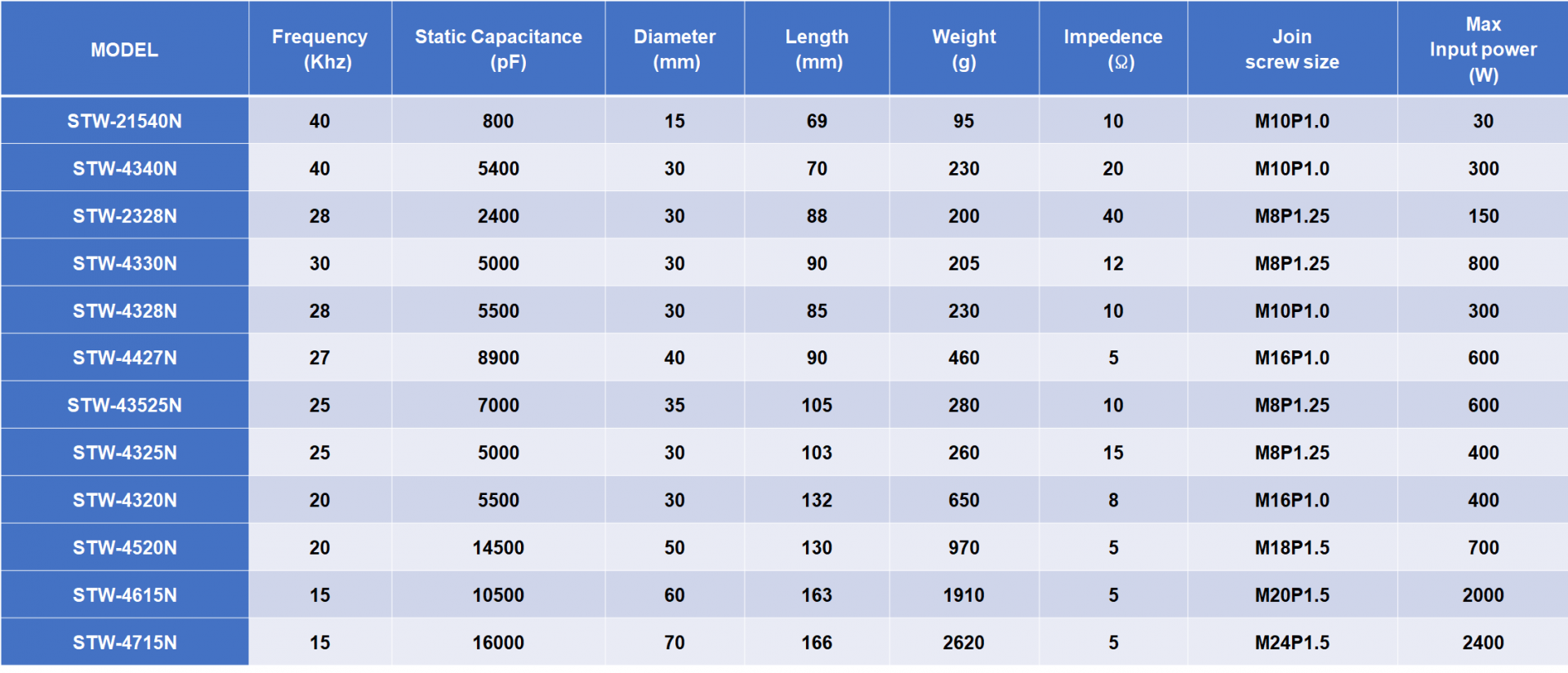

| MODEL | Freq. (Khz) |
Cap. (pF) |
Dia. (mm) |
Len. (mm) |
Weight (g) |
Imp. (Ω) |
Join Screw | Max Power |
|---|---|---|---|---|---|---|---|---|
| STW-21540N | 40 | 800 | 15 | 69 | 95 | 10 | M10 P1.0 | 30W |
| STW-4340N | 40 | 5400 | 30 | 70 | 230 | 20 | M10 P1.0 | 300W |
| STW-2328N | 28 | 2400 | 30 | 88 | 200 | 40 | M8 P1.25 | 150W |
| STW-4330N | 30 | 5000 | 30 | 90 | 205 | 12 | M8 P1.25 | 800W |
| STW-4328N | 28 | 5500 | 30 | 85 | 230 | 10 | M10 P1.0 | 300W |
| STW-4427N | 27 | 8900 | 40 | 90 | 460 | 5 | M16 P1.0 | 600W |
| STW-43525N | 25 | 7000 | 35 | 105 | 280 | 10 | M8 P1.25 | 600W |
| STW-4325N | 25 | 5000 | 30 | 103 | 260 | 15 | M8 P1.25 | 400W |
| STW-4320N | 20 | 5500 | 30 | 132 | 650 | 8 | M16 P1.0 | 400W |
| STW-4520N | 20 | 14500 | 50 | 130 | 970 | 5 | M18 P1.5 | 700W |
| STW-4615N | 15 | 10500 | 60 | 163 | 1910 | 5 | M20 P1.5 | 2000W |
| STW-4715N | 15 | 16000 | 70 | 166 | 2620 | 5 | M24 P1.5 | 2400W |
